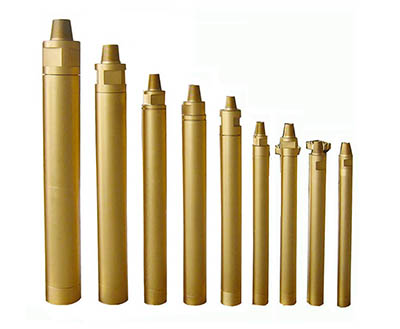

High Air Pressure with foot valve DTH Hammers
Item Description | Weight (Kg) | Part Number | |
1 | Top Sub | 41.00 | MSD801 |
2 | "O" Ring of Top Sub | 0.02 | MSD802 |
3 | Breakout Ring | 0.20 | MSD803 |
4 | Check Valve | 1.50 | MSD804 |
5 | Spring | 0.10 | MSD805 |
6 | Compression Buffer | 0.42 | MSD806 |
7 | Air Distributor | 12.50 | MSD807 |
8 | Internal Cylinder | 8.60 | MSD808 |
9 | Piston | 42.00 | MSD809 |
10 | External Cylinder | 65.00 | MSD810 |
11 | "O" Ring of Stop Ring | 0.05 | MSD811 |
12 | Stop Ring | 1.20 | MSD812 |
13 | Guided Sleeve | 3.40 | MSD813 |
14 | Drive Chuck | 16.00 | MSD814 |
15 | Drill Bit | MSD815 |
According to your request, the top sub can be made into two spanners, and put protection buttons. An air controlling hole can be drilled on the check valve to provide more efficient cuttings discharge.
Technical ParametersLength(Less bit) | Weight(Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread |
1463mm | 192.00Kg | ø180mm | SD8 | ø195-ø254 | API 4 1/2" Reg |
Working Pressure | Impact Rate At 1.7Mpa | Recommended Rotation Speed | Air Consumption | ||
145-350PSI | |||||
1.0-2.5Mpa | 20HZ | 15-25r/min | 836-1150CFM |
Detailed air consumption can be seen in appendix P73
