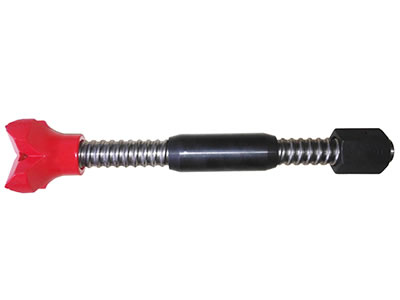

T40/16 Self-drilling Rock Bolt and Accessories

Inquiry Form
Description T40 Size mm /inch Weight Kg / Lb. Part No. Remark
Bit with Thread T40 /16 Hardened cross bit 76mm / 3.00 inch 90mm / 3.54 inch 100mm / 3.94 inch 115mm / 4.53 inch 0.90kg / 1.98 lb. 1.50kg / 3.30 lb. 1.65kg / 3.64 lb. 2.60kg / 5.73 lb. 40MT311076 40MT311090 40MT311100 40MT311115 Hardened cross bit for loose to medium dense ground conditions
TC cross bit 76mm / 3.00 inch 90mm / 3.54 inch 100mm / 3.94 inch 115mm / 4.53 inch 130mm / 5.12 inch 150mm / 5.91 inch 1.20 kg / 2.65 lb. 1.75 kg / 3.86 lb. 2.00 kg / 4.41 lb. 2.80 kg / 6.17 lb. 3.10 kg / 6.83 lb. 5.00 kg / 11.02 lb. 40MT312076 40MT312090 40MT312100 40MT312115 40MT312130 40MT312150 TC cross bit for soft to medium rock formations
Hardened button bit 76mm / 3.00 inch 90mm / 3.54 inch 100mm / 3.94 inch 115mm / 4.53 inch 130mm / 5.12 inch 1.15 kg / 2.54 lb. 1.68 kg / 3.70 lb. 2.15 kg / 4.74 lb. 2.30 kg / 5.07 lb. 3.15 kg / 6.94 lb. 40MT301076 40MT301090 40MT301100 40MT301115 40MT301130 Hardened button bit for unconsolidated rock with boulders
TC button bit 70mm / 2.76 inch 76mm / 3.00 inch 90mm / 3.54 inch 115mm / 4.53 inch 130mm / 5.12 inch 1.78 kg / 3.92 lb. 1.40 kg / 3.09 lb. 2.00 kg / 4.41 lb. 2.80 kg / 6.17 lb. 4.92 kg / 10.85 lb. 40MT302070 40MT302076 40MT302090 40MT302115 40MT302130 TC button bit for medium rock formations
Bar T40/16 Length Meter / Feet Part No.
1 m long / 3.28 ft. 40MT01
2 m long / 6.56 ft. 40MT02
3 m long / 9.84 ft. 40MT03
4 m long / 13.12 ft. 40MT04
6 m long / 19.68 ft. 40MT06
Coupler T40 Diameter mm / inch Length mm / inch Part No. Weight
(kg) (lb.)
57 mm / 2.24 inch 160 mm / 6.3 inch 40MT1657 1.7 3.75
Nut T40 Key size mm / inch Length mm / inch Part No. Weight
Kg Lb.
68 mm / 2.67 inch 60 mm / 2.36 inch 40MT6068 0.95 2.09
