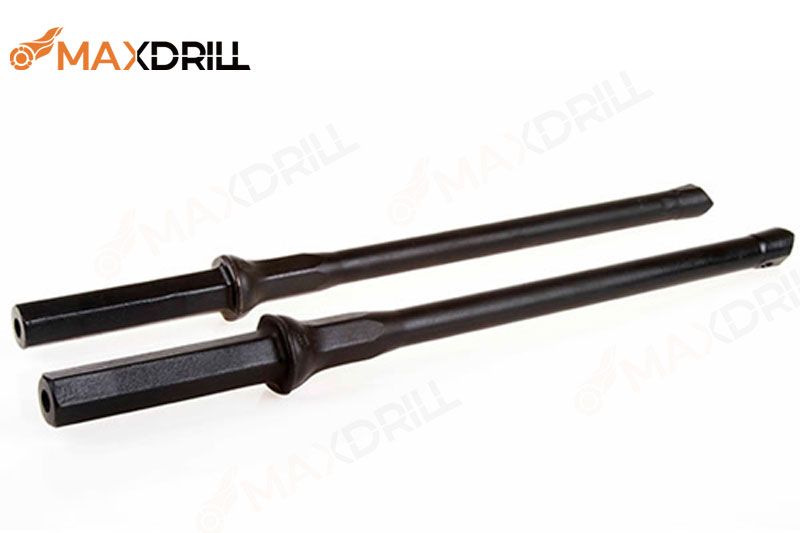

Plug Hole Rod

Plug hole rods are widely used in boring and drilling in stone quarrying, mineral quarrying, water conservancy, transportation, military industry, geology and civil engineering. They are most often used to be used for drilling bore holes in diameters ranging from 24 to 44mm.

According to different application needs, different lengths are available.

(1)Steel grade: 95CrMo equivalent to SANDBAR 20 or C253, 55SiMnMo
(2)Shank size: hex19mm, hex.22mm
(3)Head Diameter: 24mm-44m

Plug hole rod L Part No. Weight
Kg
mm Ft. inch

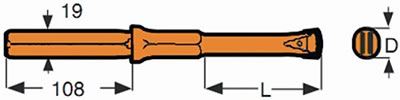

HEX19*108
230
250
300
350
400
500
- 91/8 "
- 9 7/8"
- 11 7/8"
1' 1 3/4"
1' 3 3/4"
1' 7 3/4"
01190231
01190251
01190301
01190351
01190401
01190501
1.09
1.05
1.20
1.35
1.50
1.80

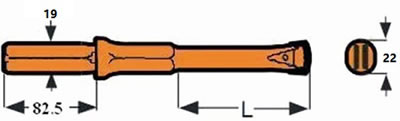

HEX19*82.5
230
250
300
350
400
500
- 9 1/8 "
- 9 7/8"
- 11 7/8"
1' 1 3/4"
1' 3 3/4"
1' 7 3/4"
01190232
01190252
01190302
01190352
01190402
01190502
0.77
0.79
0.84
0.89
0.94
1.04

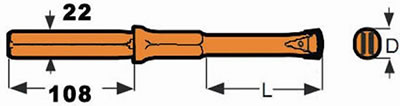

HEX22*108
230
250
300
350
400
500
- 9 1/8 "
- 9 7/8"
- 11 7/8"
1' 1 3/4"
1' 3 3/4"
1' 7 3/4"
01220231
01220251
01220301
01220351
01220401
01220501
1.09
1.15
1.29
1.43
1.57
1.84

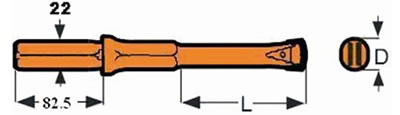

HEX22*82.5
230
250
300
350
400
500
- 9 1/8 "
- 9 7/8"
- 11 7/8"
1' 1 3/4"
1' 3 3/4"
1' 7 3/4"
01220232
01220252
01220302
01220352
01220402
01220502
1.15
1.25
1.50
1.75
2.00
2.50
