YT28 Air Leg Rock Drills
Request a Quote

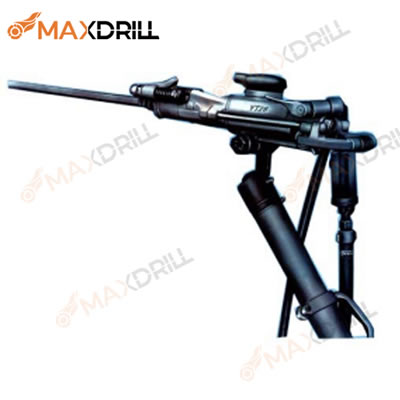

YT28 Air Leg Rock Drills

The YT28 air leg rock drills is used to drill horizontal and inclined blast holes in medium-hard rock with a hardness of f=8~18.
It may also be for making roof bolting holes. The drill is an important instrument in mining, railway, communication and water conservancy projects.
The jackleg drill can also be used together with FT160BC or FT160BD Air-leg and FY200B Line Oiler with transparent casing. The tool can also be mounted on a rig or a wagon.

YT28 air leg rock drills product catalogue
Features
  • Grouped control mechanism, quick to start up with "air-on, water-on, air-off" mechanism, making it easy to handle and maintain.
  • Low noise
  • Small vibration
  • Energy-saving
  • Efficient
  • Highly interchangeable parts with long service life
  • Reliable performance.
  • Different form similar products particularly in its high efficiency, strong flushing and powerful torque.
Specifications

Air pressure: 0.63MPa

Weight (kg) 26
L×W×H (mm) 661×247×195
Air consumption* (l/s) ≤81
Air hose dia (mm) 25
Water hose dia (mm) 13
Impact frequency* (Hz) ≥37
Bit size (mm) 34~42
Drilling depth (m) 5
Shank (hex. xL) (mm) 22×108±1
FY200B Line Oiler Specifications
Capacity (ml) 200
Weight (kg) 1.02
Air-leg Specifications
Model FT160BC FT160BD
Weight (kg) 16.9 1.4.4
Length (mm) 1800 1400
Feed length (mm) 1365 965
