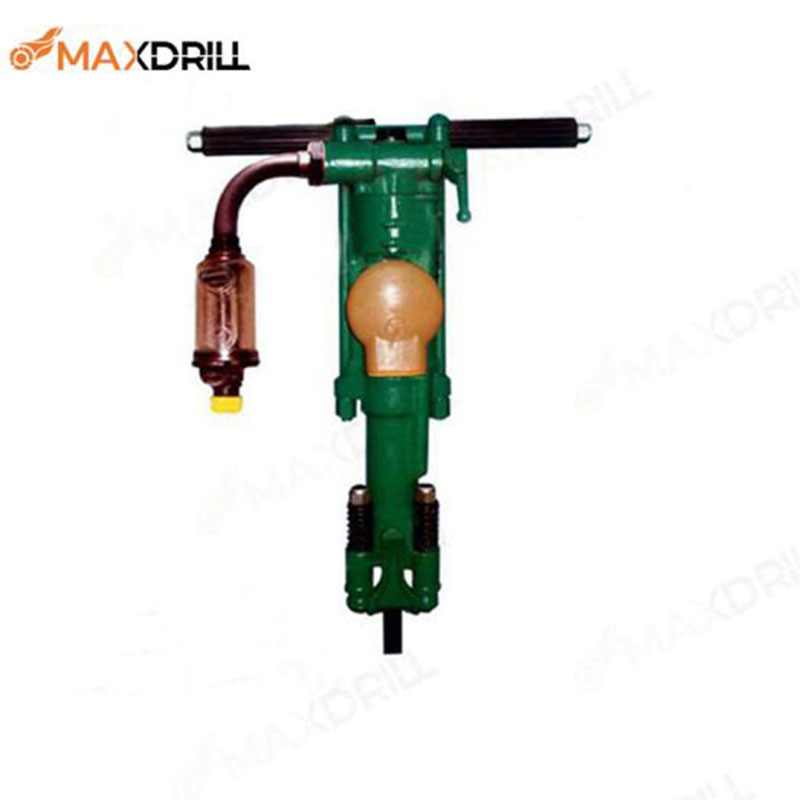

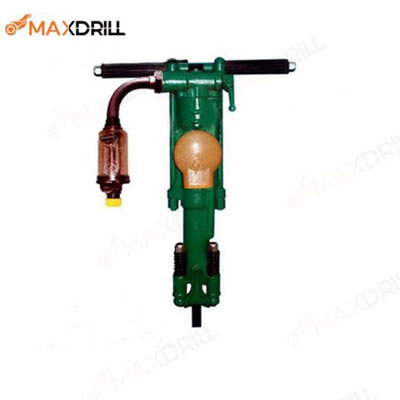

Y24 Hand-Held Rock Drill

The Y24 handheld rock drill is suitable for drilling downward and inclined blast-holes in medium hard and hard rock with a hardness of f=8~18.

It is an ideal tool for rock drilling operations in small open-pit quarries, mines, water conservancy projects and road building in hilly areas, as well as secondary blasting in large mines.

The incorporation of a FY200B Line Oiler with transparent casing provides automatic lubrication during operation

Grouped control mechanism
Quick to start up with "air-on, water-on, air-off" mechanism
Easy operation and maintenance

In addition to having the excellent performance of the YT24, it has a stronger flushing power.

Air pressure: Mpa
Weight (kg) 24
L×W×H (mm) 605 ×485 ×158
Air consumption (L/s) ≤53
Air hose dia. (mm) 19
Impact frequency (Hz) ≥27
(Bit size)Bore dia.(mm) 34~42
Drilling depth(m) 5
Shank size(hex. Mm) 22×108
FY200B Line Oiler Specifications:
Capacity (ml) 200
Weight (kg) 1.02
