EspañolConcentric Overburden Drilling System
Application Range:
The concentric overburden drilling system is widely used to drill in rock formations where ovals and fractures are present.
Design Principles:
The stable and reliable working performance and less vibration of the drill rig.
Different Structures:
Concentric system with ring bits, wing and blocks.
Other search items: concentric casing system
- Drilling System with Ring Bits
- Drilling System with Wings
- Drilling System with Blocks
Concentric Overburden Drilling System with Ring Bits
Permanent
1. When drilling starts, the pilot bit drives the ring bit down to the hole, followed by the casing shoe and casing tube.
2. At the bedrock, start the reverse circulation of tools and pull the pilot bit from the drill hole. Leave the ring bit in the hole.
3. Pour the concrete or do the next construction task.
Retrievable
1. After the drilling starts, the pilot bit drives the ring bit down to the hole, followed by the casing shoe and casing tube.
2. At the bedrock, start the reverse circulation of tools and pull the pilot bit back from the drill hole. Leave the ring bit in the drill hole.
3. Pull the casing tube out with the ring bit and at the same time pour the concrete.
Permanent Retrievable |
|||||||
| A | E | C | D | G | |||
| System No. | Outer Dia. | Thickness Range |
Ring bit Outer Dia |
Pilot bit Outer Dia | Hammer Type | Drill Pipe Range |
Ring Bit Inner Dia. |
| KC85 | 108 mm (4.25") |
9-15mm (0.35")-(0.59") |
118mm (4.65") |
86 mm (3.4") |
DHD 3.5 | 76 mm (3") |
77 mm (3.03") |
| KC90 | 114 mm (4.5") |
11-13 mm (0.43)"-(0.51") |
127 mm (5") |
9 0 mm (3.6") |
DHD 3.5 COP32/34 |
76 mm (3") |
82 mm (3.22") |
| KC102 | 127 mm (5") |
11-13 mm ( 0 .43")-( 0 .51") |
136 mm (5.35") |
102 mm (3.97") |
DHD3.5 COP32/34 |
76 mm (3") |
92 mm (3.62") |
| KC115 | 140 mm (5.5") |
13 - 16 mm (0.5")-(0.63") |
152 mm (5.98") |
115 mm (4.6") |
DHD340 QL 40 , SD-4 |
76 mm (3") |
105 mm (4.14") |
| KC115A | 146mm (5.75") |
14-19mm (0.55") - (0.75") |
154 mm (6") |
115 mm (4.6") |
DHD340 , QL 40 , SD-4 |
76 mm (3") |
105 mm (4.14") |
| KC140 | 168 mm (6.6") |
13-19 mm (0.51") - (0.75") |
184 mm (7.25") |
140 mm (5.5") |
DHD 350 QL 50 , SD-5 |
76mm (3") |
125 mm (4.92") |
| KC152 | 178 mm (7") |
13- 19 mm (0.51") - (0.75") |
194 mm (7.65") |
150 mm (5.9") |
DHD350 QL50 , SD-5 |
76, 89 mm (3"),(3.5") |
140 mm (5.5") |
| KC165 | 193 mm (7.6") |
13- 20 mm (0.51") -(0.78") |
206 mm (8.11") |
16 5 mm (6.45") |
DHD 360 QL 60 , SD-6 |
89, 114 m (3.5"),(4.5") |
150 mm (5.90") |
| KC185 | 219 mm (8.62") |
13-20mm ( 0 .51") - ( 0 .78") |
234 mm (9.2") |
184 mm (7.25") |
DHD 360 QL 60 , SD-6 |
89, 114 mm (3.5"),(4.5") |
165 mm (6.5") |
| KC210 | 244 mm (9.6") |
13 - 20 mm (0.51") -(0.78") |
260 mm (10.25") | 210 mm (8.25") |
DHD360/80 SD-6/8 , QL 60/80 |
114 mm (4.5") |
190 mm (7.5") |
| KC240 | 273 mm (10.75") |
16- 22 Mm (0.63") -(0.83") |
305 mm (12") |
240 mm (9.45") |
DHD380, QL 80 , SD-8 |
114, 127mm (4.5"),(5") |
220 mm (8.7") |
| KC280 | 323 mm (12.7") |
13- 22 mm ( 0 .51") -( 0 .86") |
348 mm (13.7") |
284 mm (11.2") |
DHD 380 , QL 80 , SD 8/10 |
127 mm (5") |
255 mm (10") |
| KC365 | 406 mm (16") |
18 -24 mm (0.70") -(0.94") |
440 mm (17.32") | 364 mm (14.33") |
DHD112 QL 120 , SD - 10/12 |
140 mm (5.5") |
340 mm (13.4") |
| KC410 | 457 mm (18") |
18 - 24 mm (0.70") - (0.94") |
488 mm (19.2") |
413 mm (16.25") |
DHD 112 QL 120 , SD-12 |
140 mm (5.5") |
385 mm (15") |
| KC465 | 508 mm (20") |
18-24mm ( 0 .70")- ( 0 .94") |
538 mm (21.2") |
464 mm (18.25") |
DHD 112 QL 120/200 , SD-15/18 |
140 mm (5.5") |
440 mm (17.3") |
| KC510 | 558 mm (22") |
18 - 24 mm (0.70")-(0.94") |
590 mm (23.22") |
514 mm (20.25") |
DHD 112S , QL 120/200 SD-15/18 , NUMA 180 |
140 mm (5.5") |
485 mm (19") |
| KC560 | 610 mm (24") |
18 - 24 mm (0.70")-(0.94") | 642mm (25.25") |
566 mm (22.25") |
QL 200 NUMA180 , SD-18 |
168 mm (6.6") | 540mm (21.25") |
| KC615 | 660 mm (26") |
18 - 24 mm (0.70")-(0.94") |
694 mm (27.3") |
615 mm (24.2") |
QL200/SD-18 NUMA180 |
168mm (6.6") |
590 mm (23.2") |
| KC660 | 711 mm (28") |
18 - 24 mm (0.70")-(0.94") |
745 mm (29.3") |
665 mm (26.2") |
QL 200 , SD-18 NUMA 180/240 |
168mm (6.6") |
640 mm (25.2") |
| KC715 | 762 mm (30") |
18 - 24 mm (0.70")-(0.94") | 798 mm (31.4") |
716 mm (28.2") |
QL 200-SD18 N180/240 |
168mm (6.6") |
685 mm (26.95") |
| KC815 | 863 mm (34") |
18 - 24 mm (0.70")-(0.94") |
900 mm (35.4") |
815 mm (32") |
QL 200 NUMA 180/240 |
168mm (6.6") |
785 mm (30.9") |

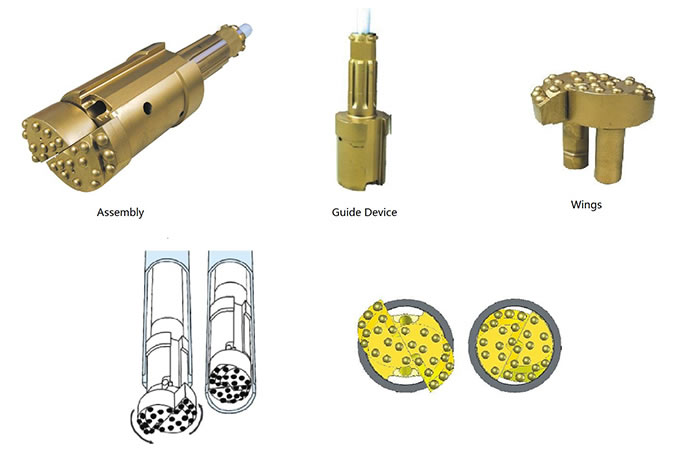

Concentric Overburden Drilling System with Wings
Operation Procedure
1. The wings swing out soon after the drilling starts. The ream drives the casing shoes and tubes in the drill hole.
2. After completing the drilling process in the overburden rock formation, the wings will close as soon as the reverse drilling process begins. This allows the drilling tool to be pulled back from the hole.
3. Follow the next drilling process.
 |
|||||||
| A | E | C | D | E | |||
| System No. | Outer Dia. | Thickness Range |
Wing Bit Outer Dia. |
Guide device Dia. |
Hammer Type | Drill Pipes | |
| KCC125 | 114 mm (4.5") |
11-13mm ( 0 .43") - ( 0 .51") |
125 mm (4.92") |
93 mm (3.66") |
DHD 350 COP 32/34 |
60 mm (2.36") |
|
| KCC152 | 140 mm (5.5") |
13-16mm ( 0 .51") - ( 0 .63") |
152 mm (6") |
113 mm (4.45") |
DHD 340 QL 40, SD-4 |
76 mm (3") |
|
| KCC150 | 146 mm (5.75") |
14-19 mm ( 0 .55") - ( 0 .75") |
154 mm (6.06") |
115 mm (4.52") |
DHD 340 QL 40, SD-4 |
76 mm (3") |
|
| KCC185 | 168 mm (6.6") |
13-19 mm (.51") - ( 0 .75") |
184 mm (7.25") |
138 mm (5.43") |
DHD 350 QL 50, SD-5 |
76, 89 mm (3"), (3.5") |
|
| KCC190 | 178 mm (7") |
13-19 mm ( 0 .51") - ( 0 .75") |
194 mm (7.6") |
148 mm (5.8") |
DHD350/360 QL50/60, SD5/6 |
76, 89 mm (3"), (3.5") |
|
| KCC205 | 193 mm (7.6") |
13-20 mm ( 0 .51") - ( 0 .78") |
206 mm (8.11") |
164 mm (6.45") |
DHD360 QL 60 /SD-6 |
114 mm (4.5") |
|
| KCC230 | 219 mm (8.62") |
13-20 mm ( 0 .51") - ( 0 .78") |
234 mm (9.2") |
185 mm (7.28") |
DHD360 QL 60, SD-6 |
114 mm (4.5") |
|
| KCC275 | 244 mm (9.6") |
13-20 mm ( 0 .51") - ( 0 .78") |
273 mm (10.75") |
219 mm (8.62") |
DHD380 QL-80, SD-8 |
114 mm (4.5") |
|
Concentric Overburden Drilling System with Blocks
Operation Procedure
1. As drilling begins, the blocks slide down through the grooves on the pilot bit, and the ream drives the casing shoes and tubes into the drill hole.
2. After the drilling process is complete in overburden rock formations, raise the drilling tools, allowing the blocks to close through the grooves. Once this is done, the drilling tools can be pulled out from the drill hole.
3. Next construction tasks can be carried out.

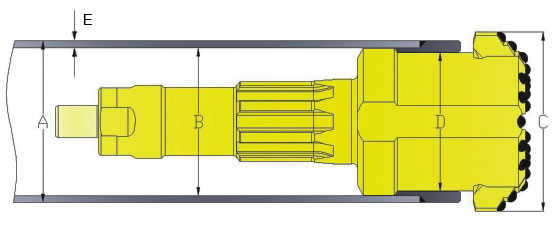

| A | E | C | D | DTH Hammer | ||
| System No. | OuterDia. | Thickness Range |
Pilot bit with Block Outer Dia. |
Pilot Bit Outer Dia. |
Hammer Type | Drill Pipes |
| KB140 | 168 mm (6.6") |
13-19 mm ( 0 .51") - ( 0 .75") |
184 mm (7.25") |
140 mm (5.5") |
DHD 350 QL 50 / SD-5 |
76, 89 mm (3"), (3.5") |
| KB150 | 178 mm (7") |
13-19 mm ( 0 .51") - ( 0 .75") |
194 mm (7.64") |
150 mm (5.90") |
DHD 350/360 QL50/60 , SD5/6 |
76, 89 mm (3"), (3.5") |
| KB165 | 193 mm (7.6") |
13-20 mm ( 0 .51") - ( 0 .78") |
206 mm (8.11") |
164 mm (6.45") |
DHD 360 QL 60 , SD-6 |
89, 114 mm (3.5"),(4.5") |
| KB180 | 219 mm (8.62") |
13-20 mm ( 0 .51") - ( 0 .78") |
234 mm (9.2") |
182 mm (7.16") |
DHD 360 QL 60 , SD-6 |
89, 114 mm (3.5"),(4.5") |
| KB210 | 244 mm (9.6") |
13-20 mm ( 0 .51") - ( 0 .78") |
260 mm (10.25") |
210 mm (8.25") |
DHD360/380 QL-60/80 , SD-6/8 |
114 mm (4.5") |
| KB240 | 273 mm (10.75") |
16-20 mm ( 0 .63") - ( 0 .78") |
305 mm (12") |
240 mm (9.45") |
DHD 380 QL 80 / SD-8 |
114,127mm (4.5"), (5") |
| KB280 | 323 mm (12.7") |
13-22 mm ( 0 .51")( 0 .86") |
348 mm (13.7") |
284 mm (11.2") |
DHD 380 QL-80 – SD-8/10 |
127 mm (5") |
| KB365 | 406 mm (16") |
18-24 mm ( 0 .70") - ( 0 .94") |
440 mm (17.32") |
364 mm (14.33") |
DHD 112 QL 120 , SD-10/ 12 |
127,140mm (5"), (5.5") |
| KB410 | 457 mm (18") |
18-24 mm ( 0 .70") - ( 0 .94") |
488 mm (19.2") |
413 mm (16.25") |
DHD 112 QL-120/200 , SD-15 |
127,140mm (5"),(5.5") |
| KB460 | 508 mm (20") |
18-24 mm ( 0 .70") - ( 0 .94") |
538 mm (21.2") |
464 mm (18.26") |
DHD 112S QL 120/200 , SD-15/18 |
140 mm (5.5") |
| KB510 | 558 mm (22") |
18-24 mm ( 0 .70") - ( 0 .94") |
590 mm (23.2") |
514 mm (20.2") |
DHD 112S QL 120/200 , SD-15/18 , N180 |
140 mm (5.5") |
| KB560 | 610 mm (24") |
18 - 24 mm ( 0 .70") - ( 0 .94") |
642 mm (25.25") |
566 mm (22.3") |
QL 200 , SD-18 , NUMA 180 |
140, 168mm (5.5"),(6.6") |
| KB615 | 660 mm (26") |
18 - 24 mm ( 0 .70") - ( 0 .94") |
694 mm (27.3") |
615 mm (24.2") |
QL 200 , SD-18 NUMA 180/240 |
168mm (6.6") |
| KB665 | 711 mm (28") |
18 - 24 mm ( 0 .70") - ( 0 .94") |
745 mm (29.3") |
665 mm (26.2") |
QL 200 , SD-18 NUMA180/240 |
168 mm (6.6") |
| KB715 | 762 mm (30") |
18 - 24 mm ( 0 .70") - ( 0 .94") |
798 mm (31.4") |
716 mm (28.2") |
QL 200 , SD-18 NUMA 180/240 |
168mm (6.6") |
| KB815 | 863 mm (34") |
18 - 24 mm ( 0 .70") - ( 0 .94") |
900 mm (35.4") |
815 mm (32") |
QL 200 , SD-18 NUMA 240 |
168 mm (6.6") |
