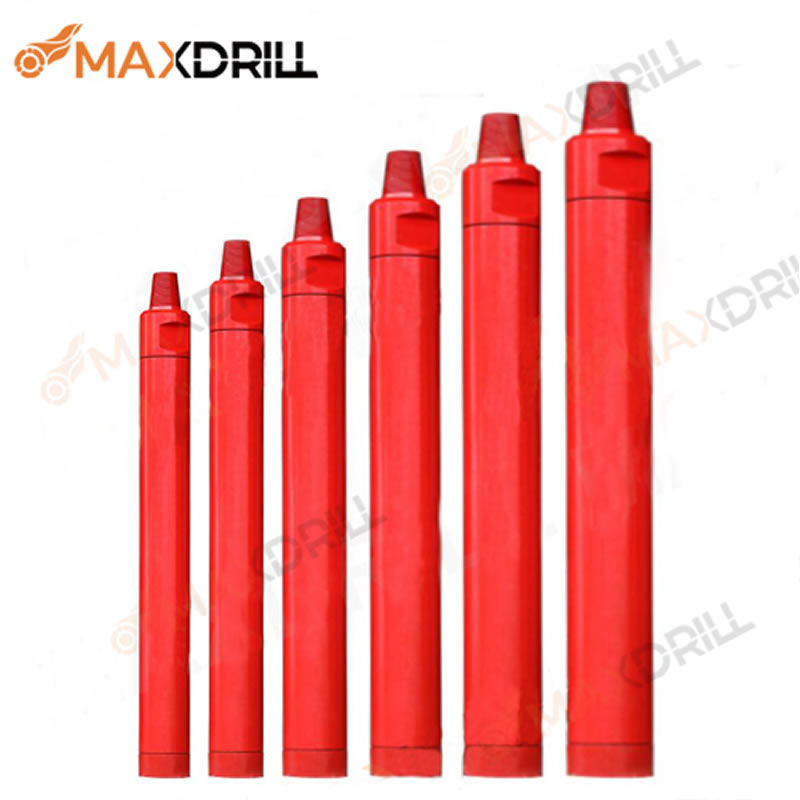

DTH Hammers
Maxdrill’s DTH hammers, equipped with DTH drill bits, have strong excavation capability and thus are applied in the fields of site investigation, open-pit mining, quarrying and building construction.
Maxdrill’s DTH hammers deliver outstanding drilling performance while reducing the drilling cost. In underground mining projects, they ensure high-efficient transmission of percussive force into the rock, high drilling accuracy and the optimal drilling outcome.
Advantages
- Delivers maximum energy to the drill bit, enabling a fast drilling speed and low air consumption due to the specialized inner structure of DTH hammers. Each one is designed according to the latest in rock drilling theory.
- The smooth performance and long service life of the DTH hammer is due to the high quality alloy steel materials and advanced processing technology used to manufacture the hammer.
- There is a very low problem rate, and maintenance is easy due to the simple, reliable and easy to assemble/disassemble inner structure of the hammer.
- It is easy to remove the bit from the hammer due to the multihead thread connecting the chuck and cylinder of the hammer.
- The DTH is interchangeable with a DTH bit and drill pipe.
Highlights
- The simple structure design reduces downtime to a large degree;
- It is short, lightweight and safe;
- Maxdrill’s patent designs of DTH drill hammers maximize the transmission efficiency of the percussive force;
- Surface of parts are enhanced to be anti-fatigue and thus DTH hammers have longer service life;
- Contact surface area, pneumatic chambers and the percussive rate have been improved to increase the drilling speed.
Specifications
- Including DTH hammers with valve, DTH hammers without valve, big hole DTH hammers and low air pressure DTH drilling tools
- Length: 3 to 12 inch
- Package: in plywood
- Productivity: 2,000pcs/month
Parameter
| Inch | Type | Bit Shank | Connection Thread | Optional |
| 1" | MBR1A | BR1 | RD 40 / BOX | with foot valve |
| 2" | MBR2A | BR2 | RD 50 / BOX | without foot valve |
| MD25A | MD25 | T42 x 10 x 1.5 |
| 3" | MD35 | DHD3.5 | API 2 3/8 | with foot valve |
| MD35A | IR3.5 | without foot valve |
| 4" | MD45S | DHD3.5 | API 2 3/8 | with foot valve |
| MD45 | Cop44/DHD340 |
| MQL4 | QL40 |
| MSD4 | SD4 |
| MQL4 | Cop44/DHD340A |
| MM4A | Mission40A | without foot valve |
| MQL4A | QL40 |
| 5" | MD55 | Cop54/DHD350R | API 2 3/8 API 3 1/2 | with foot valve |
| MD55S | Cop54/DHD350R |
| MM5A | Mission50A | without foot valve |
| MSD5A | SD5 |
| MQL5A | QL50 |
| MD55A | Cop54/DHD350R |
| MSD5 | SD5 | API 3 1/2 | with foot valve |
| MQL5 | QL50 |
| 6" | MD65A | Cop64/DHD360 | API 3 1/2 | without foot valve |
| MM6A | Mission60A |
| MSD6A | SD6 |
| MQL6A | QL60 |
| MD65 | Cop64/DHD360 | with foot valve |
| MSD6 | SD6 |
| MQL6 | QL60 |
| 7" | MW7-A | MK70A | API 3 1/2 | without foot valve |
| 8" | MD85A | Cop84/DHD380 | API 4 1/2 | without foot valve |
| MSD8A | SD8 |
| MQL8A | QL80 |
| MD85 | Cop84/DHD380 | with foot valve |
| MSD8 | SD8 |
| MQL8 | QL80 |
| 9" | MQL95A | QL80 | API 4 1/2 | without foot valve |
| 10" | MSD10 | SD10 | API 4 1/2 API 5 1/2 | with foot valve |
| MN100A | NUMA100 | without foot valve |
| MN100 | NUMA100 | API 6 5/8 | with foot valve |
| MSD10A | SD10 | without foot valve |
| MD1120A | DHD1120 |
| 12" | MSD12 | SD12 | API 6 5/8 | with foot valve |
| MN125 | NUMA125 |
| MSD12A | SD12 | without foot valve |
| MN125A | NUMA125 |
| 15", 20", 25" | MD330A | MD330 | API 7 5/8 | without foot valve |
| MD450A | MD450 | According to your request |
| MD525A | MD525 |
DTH Hammers Information Downloads
-
DTH hammers with foot valve
-
DTH hammers without foot valve
-
Big hole DTH hammers
-
Low air pressure DTH drilling tools
As a reliable drilling tools manufacturer with a focus on supplying “Energy-saving, Economical, Efficient” products all along, we gradually become one of the most credible Chinese manufacturers in rock drilling tools industry. Maxdrill is always committed to supplying low cost, high efficiency, energy saving and environment-friendly products for global customers. No matter what types of rocks — soft rock, loose-medium rock, hard rock and any other special formations, just tell us what you need and leave the rest to us, and our customer service is always there to help you meet your requirements.
