Thread R35

Top Hammer Drilling Tools for Drifting and Tunneling

Bit Diameter: 48mm-57mm
Length of drill rod: 2800mm-5530mm
Button bit design: Flat face, drop center, normal and retrac body.
Tungsten carbide (Buttons): Spherical, ballistic and conical.
Applications: Drifting, tunneling, bench

We have different designs for various rock formations, and a longer service life to decrease use costs for users.

Button bit Dimensions D Flushing hole (mm) Buttons (mm) Angle Class Part no.
mm in Front No size Gauge No size Front.,No size Gauge.,No size
48
51
1 7/8
2
1×5.5
2×6
2×5.5
1×5
2×9
2×9
5×11
5×11
30°
30°
H
H
3048R3507
3051R3507
48
51
54
57
1 7/8
2
2 1/8
2 1/4
3×5
3×5.5
3×6
3×7
1×5
1×5.5
1×6
1×6
3×9
3×9
3×10
3×10
6×10
6×10
6×11
6×11
30°
35°
35°
35°
M
M
M
M
3048R35F09
3051R35F09
3054R35F09
3057R35F09
54
57
2 1/8
2 1/4
3×6
3×6
1×5.5
1×6
3×10
3×10
6×11
6×11
35°
35°
M
M
3054R3509R
3057R3509R
Reaming tools
Pilot bit 12° taper
41 1 5/8 2×5 2×5.5 2×8 4×9 30° - 3041R3506KP
Reaming bit 12° taper
89
102
3 1/2
4
-
-
-
-
4×10
4×10
8×11
8×11
35°
35°
-
-
3089R3512KR
30102R3512KR
Dome bit
76
89
102
3
3 1/2
4
2×9
2×9
2×9
2×7
2×8
2×9
1×11
1×12
1×12
14×11
14×12
14×12
35°
35°
35°
-
-
-
3076R3515KD
3089R3515KD
30102R3515KD
Drill rod Dimensions L Dimensions D Part no
mm ft in mm in

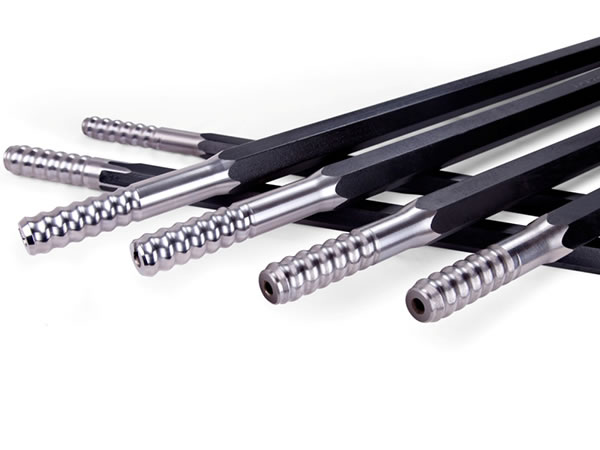

Hex rod 35 with threads R35/T38
4310
4920
5530
14
16
18
2
2
2
35
35
35
1 1/4
1 1/4
1 1/4
2135T38R3543
2135T38R3549
2135T38R3555
Coupling Dimensions Part no
L mm in D mm in
R35-R35
160 6 1/4 48 1 7/8 MX-R354816
Crossover coupling R32-R35
171 6 3/4 48 1 7/8 MX-R35R324817
